Sic heating elements are widely used in high-temperature applications that require excellent thermal and chemical resistance. To ensure optimal performance and longevity of these heating elements, it is important to use the right accessories during installation and operation.
The following are the accessories of Silicon Carbide Heating Elements that can be used：

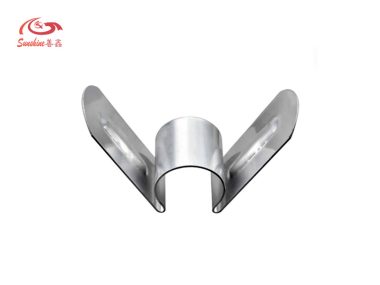

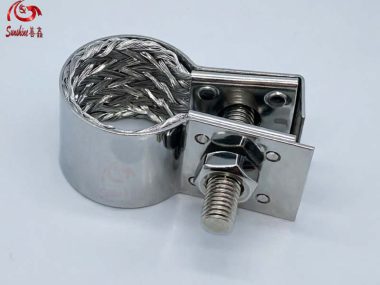

Stainless steel c clamps are used to secure braided wire to sic heating elements.
Aluminum braided straps are made of multiple strands of aluminum wire, flexible and highly conductive, which are used to connect silicon carbide heating rods to transmit electricity
These connectors are used to attach the heating elements to power sources. To install them, strip the wire ends of the heating element and insert them into the terminal connector. Tighten the screw to secure the connection.
These insulators are used to protect the heating elements from physical damage and to prevent electrical arcing. To install them, slide the insulator onto the heating element and position it at the desired location. Secure it in place using clamps or adhesive.
These brackets are used to support the heating element and prevent it from sagging or breaking due to its own weight or thermal expansion. To install them, position the brackets at the desired location and secure them using screws or clamps.
These tubes are used to protect the heating elements from chemical corrosion or mechanical damage in harsh environments. To install them, slide the protective tube onto the heating element and position it at the desired location. Secure it in place using clamps or adhesive.
These devices are used to measure the temperature of the heating element and control the temperature of the system. To install them, insert the thermocouple into the protective tube or ceramic insulator and secure it in place using a compression fitting.
These bricks are used to create a protective barrier around the heating element and prevent heat loss or damage to surrounding components. To install them, stack the bricks around the heating element and secure them using mortar or adhesive.
It is important to follow the manufacturer's instructions and guidelines when installing and using Sic heating element accessories to ensure safe and efficient operation. Proper maintenance and inspection of these accessories can also help extend the life of the heating element and prevent costly repairs or replacements.
